Invacare Tracer SX5 Wheelchair
Invacare Tracer SX5 Wheelchair

Invacare Tracer SX5 Wheelchair

Brand/Manufacturer: INVACARE CORPORATION
Save
Authorized Retailer Badge
  • Non Returnable
  • FSA Approved

Invacare Tracer SX5 Wheelchair is designed with lightweight steel frame, making it perfect for rental and long or short-term use. It offers multiple seat widths, arm styles, sectional back and seat-to-floor heights by utilizing the dual axle position frame base.

Why choose Invacare Tracer SX5 Wheelchair?

  • Carbon steel frame
  • Heavy-duty inner liner
  • Urethane rear tires
  • Dual axle frame base
  • Intended for indoor and outdoor use
  • Flame-retardant upholstery
  • Attractive, silver vein finish

Product image for illustration purposes only, actual product may vary.

Buy this product and earn 12.4 Reward Dollars.

  • ORDERING DETAILS
  • Frame Type
  • Seat Size (Frame Width & Depth)
  • Upholstery Colors
  • Back Type
  • Arm Type
  • Wheel Options
  • Caster Options
  • Handrim Options
  • Wheel Locks
  • Front Riggings
  • Total: $350
    Total: $248
Total: $350
Total: $248

Invacare SX5 Wheelchair Features

  • Urethane rear tires mounted on no flex wheels for superior performance
  • 14-gauge cross braces add durability and strength
  • Carbon steel frame weighs 34lb
  • Heavy-duty inner liner keeps the seat and back from stretching
  • Urethane rear tires mounted on no flex wheels, is built to last
  • Dual axle allows for conversion to hemi-height
  • This manual wheelchair comes with Nylon upholstery for added comfort
  • Flame-retardant upholstery resists mildew and bacteria, as well as cold-crack and UV damage
  • Low-maintenance, dual-sealed precision bearings
  • Sectional back available in 16" and 18" back heights

Invacare Tracer SX5 Wheelchair User Manual

What to buy with Invacare Trcer Wheelchair?


How to use Invacare Tracer SX5?

Using Flip-Back Armrest:


Using Flip-Back Armrest of Tracer SX5 Wheelchair

  1. Push down on front of armrest to ensure it is fully seated in front socket.
  2. Press in armrest release button located on armrest front tube.
  3. Rotate front of armrest up and out of arm socket.
  4. To prepare armrest for use, rotate armrest downward, making sure front tube of armrest inserts into arm socket.
  5. Push armrest down until release button snaps into arm socket.
  6. Ensure armrest is securely locked into arm socket and armrest release button locks into place before using.

Adjusting Armrest Height:

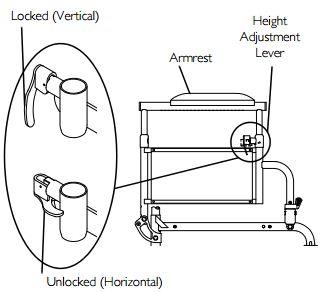

Adjusting Armrest Height of Tracer SX5 Wheelchair

  1. Unlock the armrest by flipping the height adjustment lever on the top front of the armrest to the up (horizontal) position.
  2. Adjust armrest to one of five positions.
  3. Lock the armrest by pressing the height adjustment lever into the down (vertical) position when the desired armrest height is achieved.
  4. Repeat steps 1-3 for another armrest.

Adjusting Seat Depth:

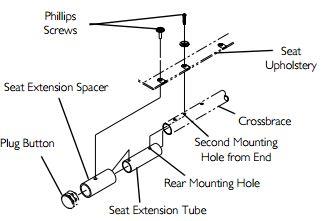

Adjusting Seat Depth of Tracer SX5 Wheelchair

  1. Remove the existing seat upholstery from the wheelchair.
  2. Remove the two plug buttons from the ends of the crossbraces that are towards the front of the lightweight wheelchair.
  3. Install the two seat extension tubes into the ends on the crossbraces. Line up the rear mounting hole of the seat extension tube with the second mounting hole from the end of the crossbrace.
  4. Install the two seat extension spacers onto the two seat extension tubes.
  5. Install the new seat upholstery onto the wheelchair. Make sure to line up the mounting holes in the seat extension tubes and seat extension spacers with the new seat upholstery.
  6. Install plug buttons into the ends of the seat extension spacers.

Warnings:

  • Do not stand on the frame of the wheelchair.
  • Do not use the footplate as a platform. When getting in or out of the tracer wheelchair, make sure that the footplates are in the upward position. Always use the handrims for self-propulsion.
  • Do not operate on roads, streets or highways.
  • Do not allow children to play on or operate the wheelchair.
  • Do not operate on soft surfaces such as sand, grass, or gravel.

Invacare Tracer SX5 Specification

ParticularsDimensions
Seat (Frame) Width16", 18"
Seat (Frame) Depth16"
Seat-to- Floor Height17.5", 19.5"
Back Height16", 18" (sectional)
Casters6", 8"
Wheels24"
Arm StyleFull-length fixed height, padded
Desk-length fixed height, padded
Front RiggingsHemi swingaway footrest: 17" to 21" (knee-to-heel)
Hemi swingaway padded elevating legrest:  17.5" to 21" (knee-to-heel)
(Footplates available in aluminum or composite)
Product Weight40lb
Weight Capacity250lb

Compare Your Manual Ligtweight Wheelchairs


Invacare IVC 9000 SL Lightweight Wheelchair is a perfect high-strength and durable wheelchair. It has a contemporary design and high-performance frame which gives it a superior value.
Price: $259.99
Reward Dollars: $13

Features
  • Seat Width: 16", 18" and 20"
  • Seat Depth:
    - 16" Standard
    - 18" by seat extension
  • Seat-to-floor Height: 17.5", 19.5"; 15.5", 16.5", 18.5" with different wheel and caster packages
  • Arm style:
    - Full-length fixed height, padded
    - Desk-length fixed height, padded
    - Full-length adjustable height, padded
    - Desk-length adjustable height, padded (All arm styles are space saver, flip back and non-removable)
  • Front riggings:
    - Hemi swingaway footrest: 17" to 21" knee-to-heel
    - Hemi swingaway padded elevating legrest: 17.5" to 21" knee-to-heel
    - Articulating elevating legrest: 17" to 25" knee-to-heel
  • Weight capacity: 250 lbs

  • View Product Page


    Invacare Tracer SX5 Wheelchair is perfect for rental and long or short-term use. Meets the RESNA standards for wheelchair in product performance
    Price: $248
    Reward Dollars: $12.4

    Features:
  • Seat Width: 16", 18"
  • Seat (Frame) Depth: 16”
  • Seat-to- Floor Height: 17.5", 19.5"
  • Arm Style:
    - Full-length fixed height, padded
    - Desk-length fixed height, padded
  • Front Riggings:
    - Hemi swingaway footrest: 17" to 21" (knee-to-heel)
    - Hemi swingaway padded elevating legrest: 17.5" to 21" (knee-to-heel) (Footplates available in aluminum or composite)
  • Weight Capacity: 250lb

  • View Product Page


    •Invacare 9000 XT Lightweight IVC Manual Wheelchair is designed with stylish, contemporary carbon steel frame. Combines the strength and durability.
    Price: $389.99
    Reward Dollars: $19.5

    Features:
  • Seat width:
    - Adult to hemi frame: 14", 15", 16", 17", 18", 19", 20", 22"
    - Super-hemi frame: 14", 15", 16", 17", 18"
  • Seat depth
    - 16" standard frame
    - 17", 18" by seat extensions on adult to hemi frame
    - 16", 17" super-hemi frame
  • Seat to floor height
    - 17.5", 18.5", 19.5" 15.5", 16.5" with different wheel and caster packages
    - 13.5", 14.5" on super-hemi
  • Arm style:
    - Full-length fixed height, padded, flip back, removable
    - Desk-length fixed height, padded, flip back, removable
    - Full-length adjustable height, padded, flip back, removable
    - Desk-length adjustable height, padded, flip back, removable (All arm styles available conventional or space saver)
  • Front riggings:
    - Hemi swingaway footrest 17" to 21"
    - Hemi swingaway padded elevating legrest 17.5" to 21"
    - Super-hemi swingaway footrest 11" to 17"
    - Super-hemi swingaway padded elevating legrest 11" to 17"

  • View Product Page

    Invacare SX5 Warranty

    5 years warranty on frame and crossbraces

    Customer Reviews

    Questions & Answers




    question image
    Can this wheel chair fold down?
    Franco - 11/18/2015 10:55:34 AM
    facebooktwitter
    answer image
    Thank you for reaching out to us. Tracer SX5 is does not fold down but we do have other Folding wheelchair, please find the link:
    https://www.healthproductsforyou.com/p-drive-rebel-lightweight-folding-transportable-wheelchair.html

    Hope that helps.
    Customer Care - 11/19/2015 12:03:22 AM
