Invacare 9000 XT Recliner Wheelchair
Invacare 9000 XT Recliner Wheelchair

Invacare 9000 XT Recliner Wheelchair

Brand/Manufacturer: INVACARE CORPORATION
Save
Authorized Retailer Badge
  • Non Returnable
  • FSA Approved
  • Free Shipping no minimum

Invacare 9000 XT Recliner Wheelchair is designed for individuals who demand a truly versatile and lightweight wheelchair. Rear axle base provides stable center-of-gravity in recline position while urethane casters boast a better, lighter-weight ride. 9000 XT Recliner can be configured into an endless number of seat widths, depths and heights, and has multiple frame and upholstery options.

Why choose 9000 XT Wheelchair?

  • Easy to clean nylon upholestry
  • Urethane casters for lightweight, smooth ride
  • No flex wheels for superior performance

Particulars Dimensions
Overall Width23" to 31"
Overall Width52"
Overall Depth  (with riggings)46"
Overall Depth  (without riggings)32.25"
Seat Width14" to 22"
Seat Depth16" to 18"
Folded width12.5"
Seat to floor height17.5" to 19.5"
Back StyleReclining
Back Height34" with headrest
Weight Capacity250 lbs
Weight50.5 lbs

Buy this product and earn 26.81 Reward Dollars.

Item# 9RC

  • ORDERING DETAILS
  • Frame Width and Depth
  • Seat to Floor Height
  • Arm Type
  • Frame Finish Colors
  • Upholstery Colors
  • Caster Options
  • Wheel Options
  • Handrim Options
  • Wheel Locks
  • Seat Positioning Straps
  • Front Rigging
  • Optional Accessories
  • Total: $697.11
    Total: $536.24
Total: $697.11
Total: $536.24

Invacare 9000 XT Wheelchair Features

  • Dynamic recline range from 95 degrees to 175 degrees
  • Low-maintenance, dual-sealed precision bearings
  • Heavy-duty inner liners keep seat and back from stretching
  • Flame-retardant upholstery resists mildew and bacteria, as well as cold-crack and UV damage
  • Multiple wheel offerings allow variation of seat-to-floor heights
  • Urethane rear tires mounted on no-flex wheels offer superior performance
  • High performance, low maintenance, low total lifetime cost recliner wheelchair
  • Offers versatility and high performance for users
  • Attendant or user-operated wheel locks

What to buy with Invacare 9000 XT?


How to use 9000 XT Recliner Wheelchair?

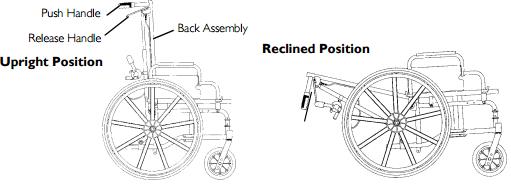

Operating Invacare 9000 XT Recliner:


    Operating Invacare 9000 XT Recliner

  1. Unfold wheelchair.
  2. Attach spreader bar.
  3. Adjust the tightness of the headrest/back upholstery.
  4. Make sure wheelchair is occupied and on a level surface before reclining.
  5. Engage the wheel locks.
  6. Inform the occupant of the wheelchair that the wheelchair is about to be reclined.
  7. Make sure occupant hands and body are clear of all pinch points.
  8. Stand behind the wheelchair and grasp both push handles firmly.
  9. Squeeze release handles.
  10. Slowly pull back on the back assembly while squeezing the release handles.
  11. When the back reaches the desired angle, slowly let go of the release handles.
  12. To return the back to the full upright position, reverse Steps 8-11 keeping in mind proper body mechanics.

Unfolding the Wheelchair:

    Unfolding the Wheelchair

  1. Tilt the wheelchair towards you (raising the opposite wheel and caster off the ground/floor).
  2. Place your hand on the top of the seat rail closest to you where the seat upholstery is attached.
  3. Point your fingers and thumb to the inside of the wheelchair.
  4. Press downward on the top of the seat rail until the wheelchair is fully open and the seat rails are fully seated in the H-blocks.
  5. Engage both wheel locks, open the footrest/legrest for clearance and transfer into the wheelchair.

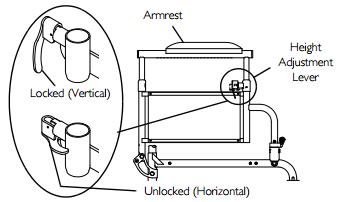

Adjusting Armrest Height:

    Adjusting Armrest Height

  1. Unlock the armrest by flipping the height adjustment lever on the top front of the armrest to the up (horizontal) position.
  2. Adjust armrest to one of five positions.
  3. Lock the armrest by pressing the height adjustment lever into the down (vertical) position when the desired armrest height is achieved.
  4. Repeat Steps 1-3 for other armrest.

Adjusting Footplate Height:

    Adjusting Footplate Height

  1. Remove the front rigging assembly.
  2. Pull the cam lock lever up to unlocked position.
  3. Push in the release buttons and reposition the footplate assembly to the desired height.
  4. Ensure that the release buttons fully protrude from holes on both sides of the front rigging support.
  5. Rotate cam lock lever down to locked position.
  6. Repeat this procedure for the other footplate, if necessary.
  7. Reinstall the swing away front rigging assembly.

Cleaning Metal Surfaces:

  • Hot water and a mild detergent on soft cloth should be used for cleaning metal surfaces
  • Wipe down with damp cloth
  • Dry surface by wiping down with dry cloth
  • Car polish and soft wax can be used to remove abrasions and restore gloss

Invacare Recliner Wheelchair User Manual

9000 XT Recliner Specification

Particulars Dimensions
Overall Width23" to 31"
Overall Width52"
Overall Depth  (with riggings)46"
Overall Depth  (without riggings)32.25"
Seat Width14" to 22"
Seat Depth16" to 18"
Folded width12.5"
Seat to floor height17.5" to 19.5"
Back StyleReclining
Back Height34" with headrest
Weight Capacity250 lbs
Weight50.5 lbs

Invacare Wheelchair Warranty

5 year limited warranty

Customer Reviews

Questions & Answers




question image
Wheelchair itself is fine for 92-yr-old woman with dementia, but she continually presses against the footpedals, which break every 2 months or so. she is NOT standing on footpedals, just pressing against them. Is there a heavier-weight legrest with better connection of footpedal available?
Mary - 7/16/2015 4:56:15 PM
facebooktwitter
answer image
Thank you for reaching out to us. Unfortunately customisable legrest is not available with this chair.
Customer Service - 7/18/2015 12:13:22 PM
